SENSOR - CRANKSHAFT POSITION
DESCRIPTION
The crankshaft position sensor (1) is mounted in the right rear of the engine block, below the turbocharger, behind a heat shield. This sensor is used to detect engine speed.
OPERATION
The crankshaft position sensor is a magnetic pickup type sensor that generates an A/C signal. The sensor contains a permanent magnet and a coil of wire. The sensor generates an A/C signal each time a notch in the reluctor wheel on the crankshaft passes across the permanent magnet. The ECM calculates engine speed based on the frequency of the A/C signal.
REMOVAL
1. Disconnect negative battery cable.
2. Raise vehicle on hoist.
3. Remove exhaust pipe to turbocharger down pipe retaining bolts and lower exhaust pipe from turbocharger downpipe.
4. Disconnect crankshaft position sensor electrical connector.
5. Remove the heat shield.

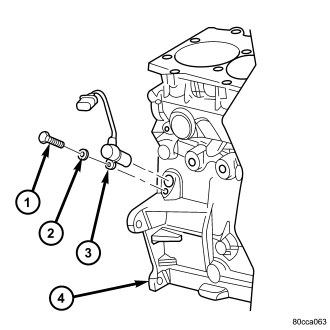

6. Remove crankshaft position sensor (3) retaining bolt and remove sensor from engine block.
INSTALLATION
1. Lubricate O-ring on crankshaft position sensor and install sensor in engine block.
2. Install crankshaft position sensor (3) retaining bolt. Torque bolt to 10.8N·m.(95 in.lbs.).
3. Connect crankshaft position sensor electrical connection.
4. Install the heat shield. Tighten fasteners to 10.8 N·m (95 in. lbs.).
5. Connect exhaust pipe to turbocharger downpipe. Torque bolts to 32.4 N·m (24 ft. lbs.).
6. Lower vehicle from hoist.
7. Connect negative battery cable.
