INSTALLATION

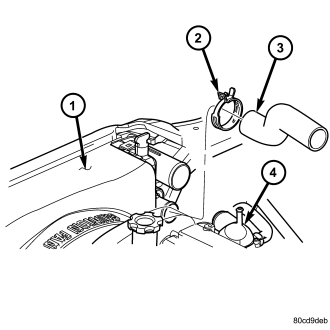

UPPER RADIATOR HOSE
1. Install upper radiator hose on radiator and thermostat housing .
2. Reposition hose clamps in proper position.
3. Refill cooling system to proper level (Refer to 7 - COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .

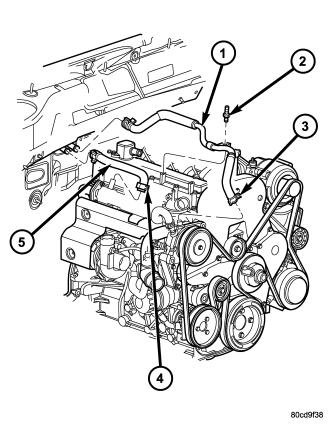

HEATER HOSES
1. Connect heater core supply hose to heater core and viscous heater. Position hose clamps into proper position.
2. Connect heater core return hose to heater core and EGR cooler. Position hose clamps into proper position.
3. Install engine cover to engine (Refer to 9 - ENGINE COVER - INSTALLATION) .
4. Refill cooling system to proper level (Refer to 7 - COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
