2007 Liberty KJ Factory Service Manual 8 - ELECTRICAL

OIL PRESSURE SENSOR FAULTED HIGH





For a complete wiring diagram Refer to Section 8W.

Diagnostic Test



Possible Causes

(K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

(K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT OPEN

(K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT OPEN

(K300) SENSOR GROUND CIRCUIT OPEN

OIL PRESSURE SENSOR

POWERTRAIN CONTROL MODULE (PCM)





Diagnostic Test

1. OIL PRESSURE SENSOR VOLTAGE ABOVE 4.92 VOLTS

Start the engine.
With a scan tool, read the Oil Pressure Sensor voltage.

Is the voltage above 4.92 volts?

Yes


No

2. OIL PRESSURE SENSOR



Turn the ignition off.
Disconnect the Oil Pressure Sensor harness connector.

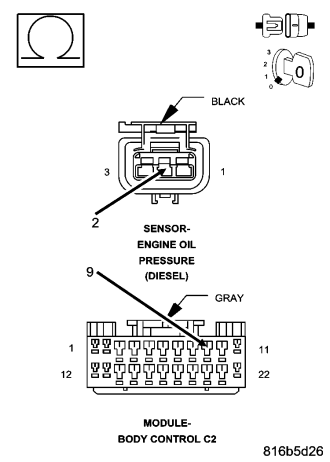

Connect a jumper wire between the (K302) Oil Pressure Sensor Signal circuit and the (K300) Sensor ground circuit in the Sensor harness connector.
Ignition on, engine not running.
With a scan tool, monitor the Oil Pressure Sensor voltage.

Is the voltage below 1.0 volt with the jumper wire installed?

Yes


No

3. (K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE



Turn the ignition off.
Disconnect the BCM C2 harness connector.
Ignition on, engine not running.

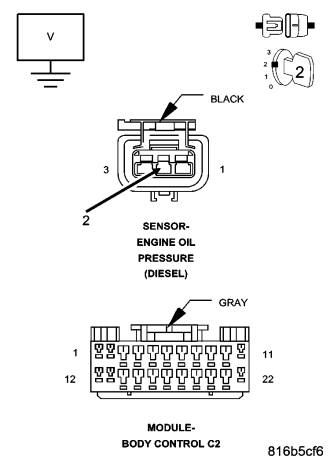

Measure the voltage on the (K302) Oil Pressure Sensor Signal circuit in the Oil Pressure Sensor harness connector.

Is the voltage above 5.2 volts?

Yes


No

4. (K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT OPEN



Turn the ignition off.

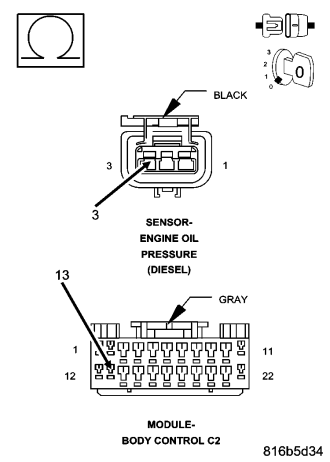

Measure the resistance of the (K302) Oil Pressure Sensor Signal circuit.

Is the resistance below 5.0 ohms?

Yes


No

5. (K302) OIL PRESSURE SENSOR SIGNAL CIRCUIT SHORTED TO THE (K301) 5–VOLT SUPPLY CIRCUIT



Disconnect the BCM C2 harness connector.

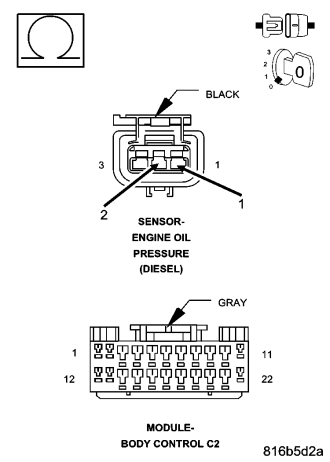

Measure the resistance between the (K302) Oil Pressure Sensor Signal circuit and the (K301) 5-volt Supply circuit in the Oil Pressure Sensor harness connector.

Is the resistance below 100 ohms?

Yes


No

6. (K300) SENSOR GROUND CIRCUIT OPEN



Measure the resistance of the (K300) Sensor ground circuit.

Is the resistance below 5.0 ohms?

Yes


No

7. BCM

NOTE: Before continuing, check the BCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.


Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes


No
