INSTRUMENT PANEL END CAP
REMOVAL
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/INSTRUMENT PANEL - WARNING)
2. Open the door.

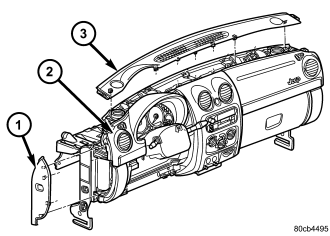

3. Using the finger indent, grasp and remove the side cover (1).
INSTALLATION
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/INSTRUMENT PANEL - WARNING)
2. Position the side panels (1) and seat the clips fully.
