INSTRUMENT PANEL PASSENGER SIDE BEZEL
REMOVAL
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/INSTRUMENT PANEL - WARNING)
On vehicles equipped with a grab handle:
1. Using a trim stick C-4755 or equivalent, remove the grab handle end caps.
2. Disconnect the electrical connector, if equipped.
3. Remove the grab handle screws.
4. Remove the grab handle and bezel assembly.
On vehicles without a grab handle:
1. Using a trim stick C-4755 or equivalent, release the retaining clips and remove the passenger side bezel (5).
INSTALLATION
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/INSTRUMENT PANEL - WARNING)
On vehicles without a grab handle:
1. Position the passenger side bezel (5) and seat the retaining clips.
On vehicles equipped with a grab handle:

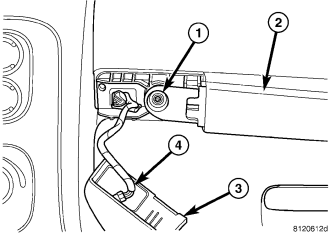

1. Install the grab handle (2) and bezel assembly and install the screws (1).
2. Connect the electrical connector (4), if equipped.
3. Position the end caps (3) in place and seat fully.
