KNEE BLOCKER
REMOVAL
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/INSTRUMENT PANEL - WARNING)

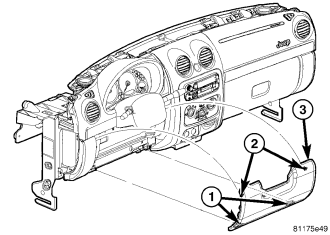

2. Reach into the steering column opening at the top of the knee blocker and pull the top rearward to disengage upper knee blocker clips (2).
3. Gently swing the knee blocker open.
4. Slide the knee blocker toward the driver side door and disengage the hinges (1) from the molded in hinge pins in the instrument panel.
INSTALLATION
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/INSTRUMENT PANEL - WARNING)
2. With the knee blocker close to a horizontal position, align both knee blocker hinges (1) to the tabs at the bottom edge of the instrument panel.
3. engage the hinges by sliding them toward the center of the vehicle as far as they can go.
4. Gently swing the knee blocker upward until the clips (2) touch the corresponding slots in the instrument panel and engage fully.
