2007 Liberty KJ Factory Service Manual 23 - BODY

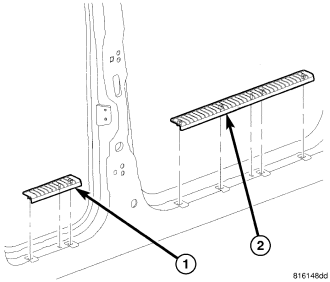

DOOR SILL SCUFF PLATE

REMOVAL




1. Using a trim stick C-4755 or equivalent, pry up the scuff plate releasing the retaining clips.

INSTALLATION




1. Position the scuff plate and seat the retaining clips.
