2007 Liberty KJ Factory Service Manual 23 - BODY

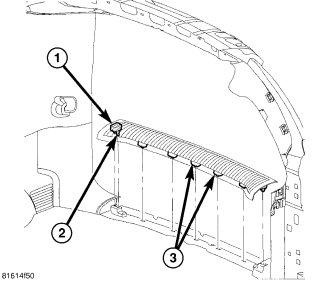

REAR DOOR SCUFF PLATE

REMOVAL




1. Using a trim stick C-4755 or equivalent, release the retaining clips and remove the scuff plate.

INSTALLATION




1. Position the scuff plate and seat the retaining clips.
