2007 Liberty KJ Factory Service Manual 23 - BODY

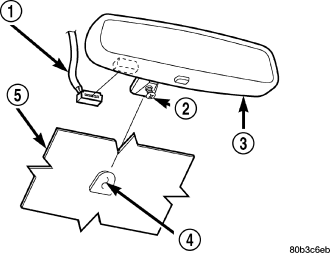

REAR VIEW MIRROR

REMOVAL




1. If equipped, disconnect mirror harness connector.
2. Loosen the mirror base setscrew.
3. Slide the mirror base upward and off the bracket.
