2007 Liberty KJ Factory Service Manual 23 - BODY

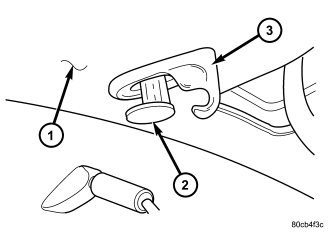

SUN VISOR SUPPORT

REMOVAL




1. Using a small pry tool or equivalent, release the support retaining clip by prying out and remove the support.

INSTALLATION




1. Position the visor support and seat the retaining clip.
