INSTALLATION
BULB
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

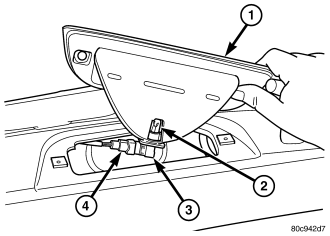

1. Align the base of the bulb (2) with the socket (3).
2. Push the bulb straight into the socket until the base is firmly seated.
3. Align the socket and bulb with the keyed opening on the back of CHMSL housing (1).
4. Insert the socket and bulb into the housing until the socket is firmly seated.
5. Rotate the socket clockwise about 30 degrees to lock it into place.
6. Position the CHMSL into the opening in the rear roof panel.
7. Install and tighten the two screws that secure the CHMSL to the roof panel. Tighten the screws to 2 N·m (21 in. lbs.).
8. Reconnect the battery negative cable.
LAMP

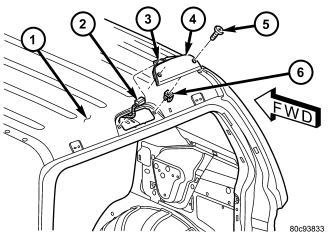

1. Check to be certain that the two plastic nuts (6) are properly positioned and in good condition on each side of the roof panel (1) opening for the Center High Mounted Stop Lamp (CHMSL) (4).
2. Position the CHMSL near the roof panel opening.
3. Reconnect the wire harness connector (2) to the CHMSL socket (3).
4. Install and tighten the two screws (5) that secure the CHMSL to the roof panel. Tighten the screws to 2 N·m (21 in. lbs.).
5. Reconnect the battery negative cable.
