TRAILER TOW CONNECTOR
REMOVAL
1. Disconnect and isolate the battery negative cable.

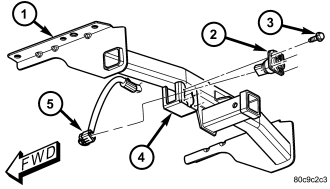

2. Remove the four screws (3) that secure the trailer tow connector (2) to the bracket (4) on the trailer hitch receiver (1).
3. Pull the trailer tow connector rearward from the hitch receiver bracket far enough to access and disconnect the rear body wire harness connector (5).
4. Remove the trailer tow connector from the trailer hitch receiver.
INSTALLATION
1. Position the trailer tow connector (2) to the trailer hitch receiver (1).
2. Reconnect the rear body wire harness connector (5) to the trailer tow connector.
3. Position the trailer tow connector into the bracket (4) on the trailer hitch receiver.
4. Install and tighten the four screws (3) that secure the trailer tow connector to the hitch receiver bracket. Tighten the screws to 4 N·m (35 in. lbs.).
5. Reconnect the battery negative cable.
