2007 Liberty KJ Factory Service Manual 8 - ELECTRICAL

*FLIP-UP GLASS AJAR CIRCUIT OPEN

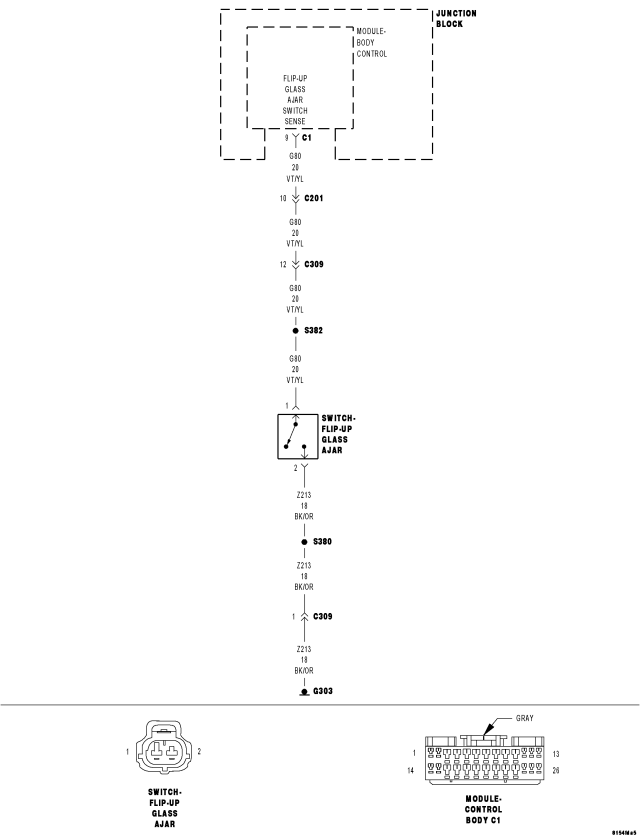

For a complete wiring diagram Refer to Section 8W.

Theory of Operation


The scan tool will display the door state NOT the switch state. It will display as True/False. True states that the door is ajar (open). False states that the door is NOT ajar (closed).



Possible Causes

FLIP-UP GLASS AJAR SWITCH GROUND CIRCUIT OPEN

(G80) FLIP-UP GLASS AJAR SWITCH SENSE CIRCUIT OPEN

FLIP-UP GLASS AJAR SWITCH

BODY CONTROL MODULE




Diagnostic Test

1. FLIP-UP GLASS AJAR FUNCTIONAL TEST

Open the Flip-up Glass.
With the scan tool in Data Display, read the FLIP-UP AJAR SW state.

Does the scan tool display TRUE?

Yes


No

2. OPEN FLIP-UP GLASS AJAR SWITCH GROUND CIRCUIT



Disconnect the Tailgate Flip-up Glass Ajar switch connector.
Using a 12-volt Test Light connected to 12-volts, test the Ground circuit.

Does the test light illuminate brightly?

Yes


No

3. CHECK FOR OPEN FLIP-UP GLASS AJAR SWITCH



With the scan tool in Data Display, read the FLIP-UP AJAR SW state.
Connect a jumper wire between Sense circuit and the Ground circuit in the Tailgate Flip-Up Glass Ajar Switch connector.

Does the scan tool display FLIP-UP AJAR SW: TRUE?

Yes


No

4. CHECK FOR OPEN (G80) FLIP-UP GLASS AJAR SWITCH SENSE CIRCUIT



Turn the ignition off.
Leave the jumper wire from the previous step connected.
Disconnect the Body Control Module C1 harness connector.

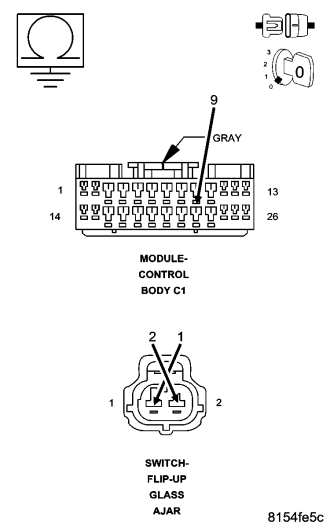

Measure the resistance between ground and the (G80) Flip-Up Glass Ajar Switch Sense circuit.

Is the resistance below 5.0 ohms?

Yes


No
