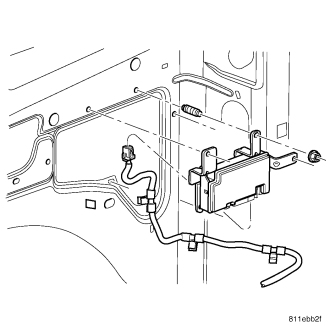

HANDS FREE MODULE
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the right quarter trim panel (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL).
3. Remove mounting fasteners.
4. Disconnect electrical harness connector.
INSTALLATION
1. Connect electrical harness connector.
2. Position module, and install mounting fasteners.
3. Install quarter trim panel (Refer to 23 - BODY/INTERIOR/QUARTER TRIM PANEL - INSTALLATION).
4. Connect battery negative cable.
