REMOVAL
OVERHEAD CONSOLE - REMOVAL
1. Disconnect and isolate the battery negative cable.

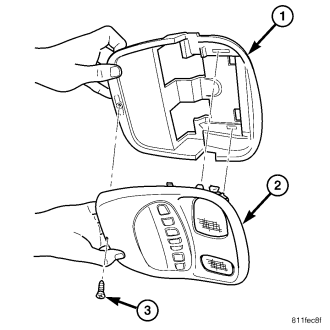

2. Remove the overhead console retaining screw (3) , located in the front of console (2) near the windshield.
3. Using your fingertips, grasp the sides of the overhead console (2) and pull straight down evenly to disengage the two snap clips at the rear of the unit.
4. Lower the overhead console far enough to access the wire harness connectors.
5. Disconnect the Electronic Overhead Module (EOM), courtesy lamps and power sunroof switch electrical connectors, if equipped.
6. Remove the overhead console (2) assembly from the vehicle.
