INSTALLATION
BULB
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

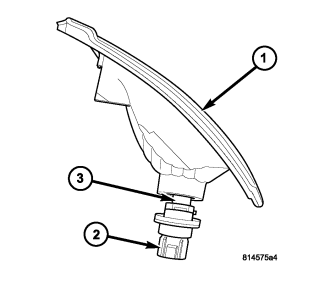

1. Align the base of the bulb (3) with the park/turn signal bulb socket (2).
2. Push the bulb straight into the socket until the base is firmly seated.
3. Align the socket and bulb with the keyed opening on the back of the front park/turn signal lamp unit housing (1).
4. Insert the socket and bulb into the housing until the socket is firmly seated.
5. Rotate the socket clockwise about 30 degrees to lock it into place.
6. Reinstall the front park/turn signal lamp unit onto the front fascia.
7. Reconnect the battery negative cable.
LAMP
1. Check to be certain that the plastic nut (3) is in good condition and properly installed in the inboard side of the front park/turn signal lamp mounting hole in the front bumper fascia.

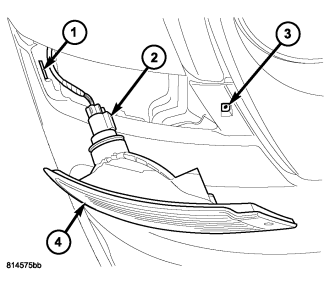

2. Position the lamp unit (4) near the mounting hole in the fascia.
3. Reconnect the wire harness connector (2) to the lamp socket and engage the lock feature.
4. Align and engage the tab on the outboard side of the lamp housing with the slot (1) in the fascia mounting hole.

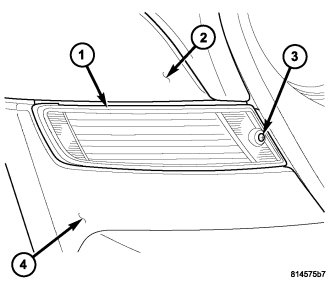

5. Position the inboard side of the lamp (1) into the fascia (4) mounting hole.
6. Install and tighten the screw (3) that secures the inboard side of the lamp to the fascia. Tighten the screw to 2 N·m (20 in. lbs.).
7. Reconnect the battery negative cable.
