TUBE-CONDENSATION DRAIN
DESCRIPTION

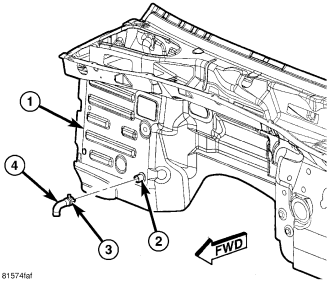

NOTE: LHD model shown. RHD model similar.
Condensation that accumulates within the HVAC housing is drained through a port (2) that protrudes through the dash panel (1). A rubber condensation drain tube (4) is installed onto the drain port with a retaining clamp (3) to ensure that any condensation completely drains to the ground.
NOTE: The condensation drain tube must be kept open to prevent condensate water from collecting in the bottom of the HVAC housing.
The tapered end of the condensation drain tube is designed to keep contaminants from entering the HVAC housing. If the tube is pinched or blocked, condensate cannot drain, causing water to back up and spill into the passenger compartment. It is normal to see condensate drainage below the vehicle in warm weather.
If the condensation drain tube must be replaced if found to be damaged or missing.
REMOVAL
NOTE: LHD model shown. RHD model similar.
1. Raise and support the vehicle.
2. Disengage the retaining clamp (3) that secures the condensate drain tube (4) to the HVAC housing drain (2) located at the passenger side of the dash panel (1) in the engine compartment.
3. Remove the condensate drain tube.
INSTALLATION
NOTE: LHD model shown. RHD model similar.
1. Position the condensate drain tube (4) onto the HVAC housing drain (2) located on the passenger side of the dash panel (1) in the engine compartment.
2. Engage the retaining clamp (3) that secures the condensate drain tube onto the HVAC housing drain.
3. Lower the vehicle.
