*DRIVER DOOR FAILS TO UNLOCK

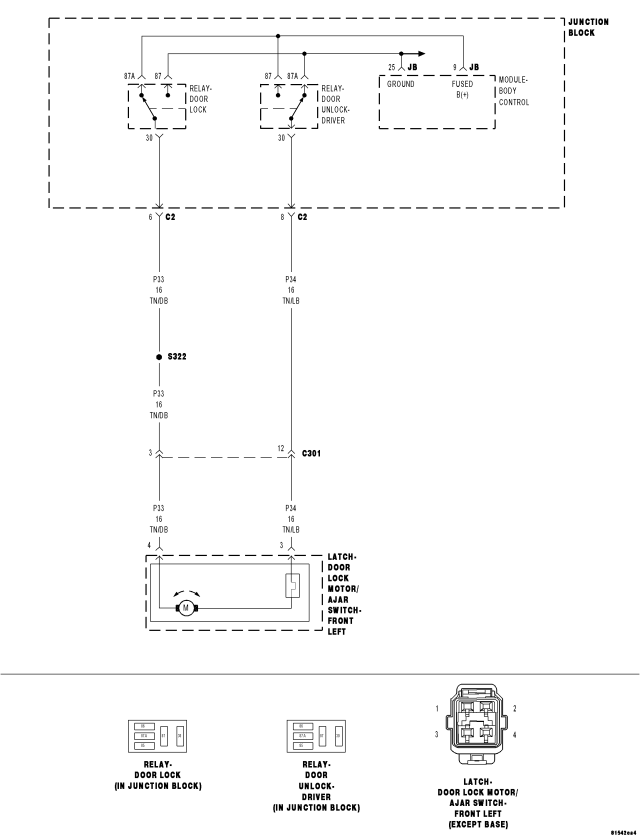

For a complete wiring diagram Refer to Section 8W.
| Possible Causes |
| (P34) DRIVER DOOR UNLOCK RELAY OUTPUT CIRCUIT SHORT TO GROUND |
| DRIVER DOOR UNLOCK RELAY |
Diagnostic Test
1. DTC'S PRESENTWith the scan tool, read DTCs.
Are there any Power Door Lock related codes present?
Yes
- Refer to symptom list for problems related to POWER DOOR LOCKS/RKE.
No
- Go To2
2. CHECK DRIVER DOOR UNLOCK RELAY
Install a substitute relay in place of the Driver Door Unlock relay in the Junction Block.
Lower the driver window.
Remove the key from the ignition switch.
Operate the door lock switch to lock and unlock positions several times.
Did the Driver Door Lock and Unlock?
Yes
- Replace the Driver Door Unlock Relay.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To3
3. CHECK (P34) DRIVER DOOR UNLOCK RELAY OUTPUT FOR A SHORT TO GROUND
Remove the Driver Door Unlock relay from the Junction Block.
Remove the Driver Door inner trim panel and disconnect the Driver Door Lock Motor connector.

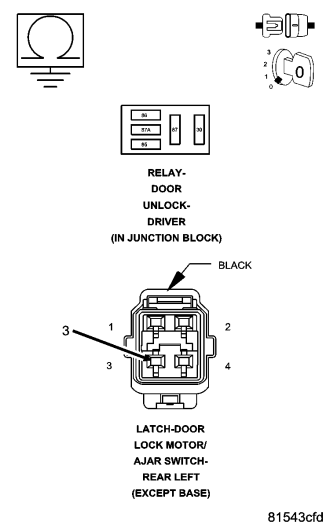

Measure the resistance between ground and the (P34) Driver Door Unlock Relay Output circuit in the Door Lock Motor connector.
Is the resistance below 1000.0 ohms?
Yes
- Repair the (P34) Driver Door Unlock Relay Output circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Test complete.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
