*ONE PASSENGER DOOR FAILS TO LOCK AND UNLOCK

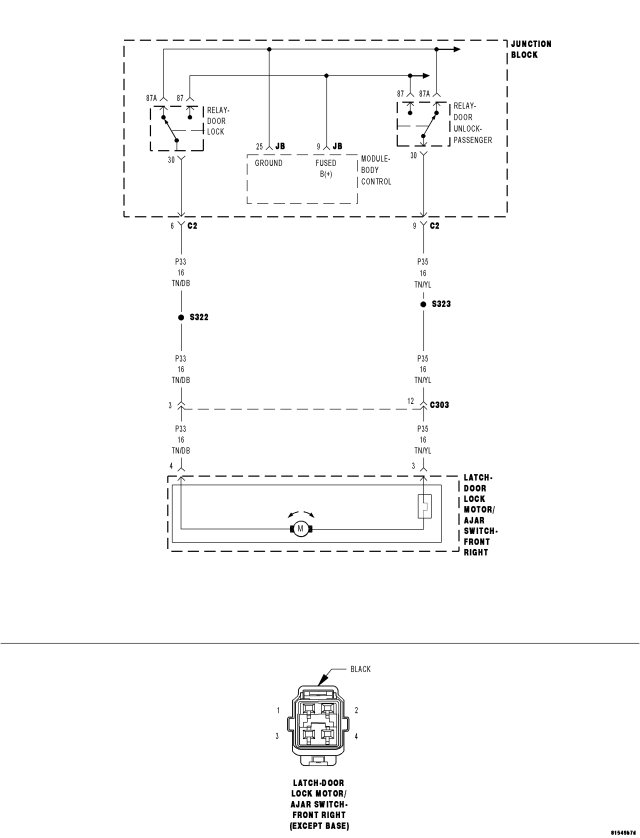

For a complete wiring diagram Refer to Section 8W.
| Possible Causes |
| (P33) DOOR LOCK RELAY OUTPUT WIRE OPEN |
| (P35) DOOR UNLOCK RELAY OUTPUT WIRE OPEN |
| DOOR LOCK MOTOR - OPEN |
Diagnostic Test
1. CHECK DOOR LOCK MOTOR
Remove the inner door trim panel to gain access to the Door Lock Motor connector.
Disconnect the appropriate Door Lock Motor connector.
Turn ignition on.
Connect a test light between the (P33) Lock Relay Output and the (P35) Unlock Relay Output circuits in the door lock motor connector.
Press the door lock switch to the Lock and Unlock positions.
Did the test light illuminate when the lock switch was pressed in both directions?
Yes
- Replace the Door Lock Motor.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To2
2. CHECK (P35) DOOR UNLOCK RELAY OUTPUT WIRE FOR AN OPEN
Using a 12-volt test light connected to ground, check the (P35) Door Unlock Relay Output circuit.
With the scan tool, actuate the Door Unlock Relay.
Does the test light illuminate brightly when the relay is actuated?
Yes
- Go To3
No
- Repair the (P35) Door Unlock Relay Output wire for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
3. CHECK(P33) DOOR LOCK RELAY OUTPUT WIRE FOR AN OPEN
Turn ignition off.
Using a 12-volt test light connected to ground, check the (P33) Door Lock Relay Output circuit.
With the scan tool, actuate the Door Lock Relay.
Does the test light illuminate brightly when the relay is actuated?
Yes
- Test Complete.
No
- Repair the (P33) Door Lock Relay Output wire for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
