INSTALLATION
3.7L ENGINE
1. Install pulley and pulley bolt to tensioner. Tighten bolt to 61 N·m (45 ft. lbs.) torque.
2. install accessory drive belt. (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
2.8L DIESEL

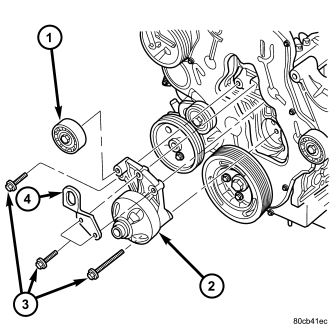

1. Install idler pulleys and retaining bolts . Torque bolts to 53 N·m.
2. Install accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
3. Connect negative battery cable.
