REMOVAL
3.7L ENGINE
1. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)
2. Remove cover.
3. Remove bolt and pulley.
2.8L DIESEL
CAUTION: The retaining bolts on the idler pulleys are left hand thread.
1. Disconnect negative battery cable.
2. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).

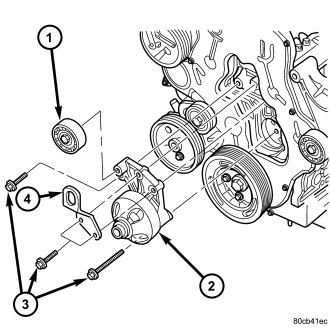

3. Remove idler pulley (1) retaining bolts and pulleys.
