FLUID COOLER
DESCRIPTION
The power steering fluid cooler (1) is located at the front of the vehicle. It is mounted to the radiator lower support just forward of the air-conditioning condenser and just rearward of the front fascia. The cooler is positioned so it is in the air flow through the front fascia of the vehicle. The cooler is serviced as an assembly with the return hose.
OPERATION
The purpose of the power steering fluid cooler (2) is to keep the temperature of the power steering system fluid from rising to a level that would affect the performance of the power steering system .
The cooler used on this vehicle is referred to as a fluid-to-air type cooler. This means that the air flow across the fin/tubes of the cooler is used to extract the heat from the cooler which it has absorbed from the power steering fluid flowing through it. The cooler is placed in series with the power steering fluid return line (1), between the steering gear and the power steering fluid reservoir. This lowers the temperature of the power steering fluid prior to it entering the power steering fluid reservoir where it is resupplied to the power steering pump.
REMOVAL
1. Remove the return line at the gear.
2. Remove the return line at the reservoir.
3. Remove the grille (Refer to 23 - BODY/EXTERIOR/GRILLE - REMOVAL).

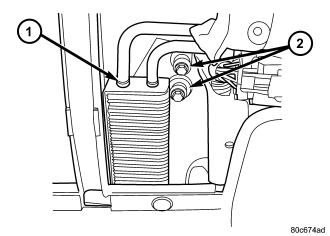

4. Remove the two cooler mounting bolts (2) .
5. Remove the cooler (1) and return hose assembly from the vehicle.
INSTALLATION
1. Install the cooler (1) / return hose assembly to the vehicle.
2. Install the two cooler mounting bolts (2).
3. Install the grille (Refer to 23 - BODY/EXTERIOR/GRILLE - INSTALLATION).
4. Install the return line at the reservoir.
5. Install the return line at the gear.
6. Refill the power steering fluid and check for leaks (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
