RESERVOIR
DESCRIPTION
Only the diesel engine reservoir is serviced separately. The 3.7L power steering reservoir is not serviced separately from the pump.
REMOVAL - DIESEL

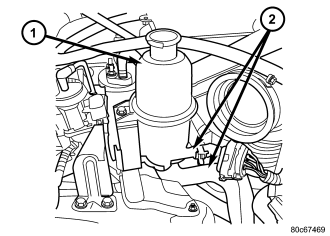

1. Siphon out as much power steering fluid as possible.
2. Remove the power steering hoses (2).
3. Remove the bolt securing the reservoir (1) to the mounting bracket.
4. Remove the reservoir (1).
INSTALLATION - DIESEL
1. Install the reservoir (1) to the mounting bracket.
2. Install and tighten the bolt to 12 N·m (9 ft. lbs.).
3. Install the hoses (2) .
4. Refill the power steering fluid and check for leaks (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
