BEARING-AXLE
REMOVAL
NOTE: Remove bearing with Bearing Remover 6310 and Foot 6310-9.
1. Remove axle shaft.
2. Remove axle seal with seal pick.
3. Position bearing (2) receiver (1) on axle tube.

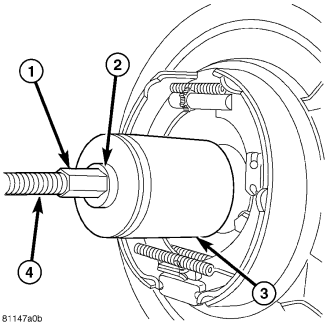

4. Insert bearing remover Foot 6310-9 (3) through receiver (2) and bearing (1).
5. Tighten remove nut (1) on the shaft (4) to pull bearing into the receiver (3).
INSTALLATION

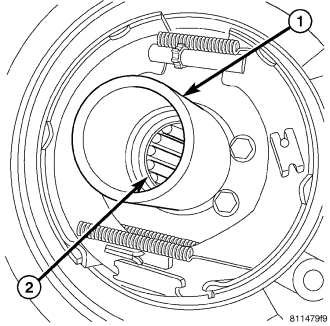

1. Remove any old sealer/burrs from axle tube.
2. Install axle shaft bearing with Installer C-4198 (1) and Handle C-4171 (2). Drive bearing in until tool contacts the axle tube.
NOTE: Bearing is installed with the bearing part number against installer.
3. Coat new axle seal lip with axle lubricant. Install seal with Installer 8493 and Handle C-4171.

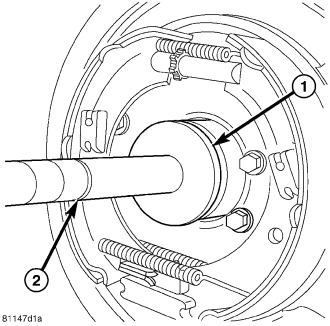

4. Install axle shaft (1) in axle tube (2).
