SEAL-AXLE SHAFT
REMOVAL

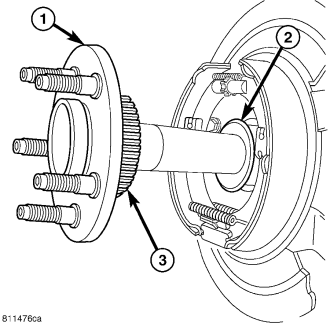

1. Remove axle shaft (1) from axle tube (2).

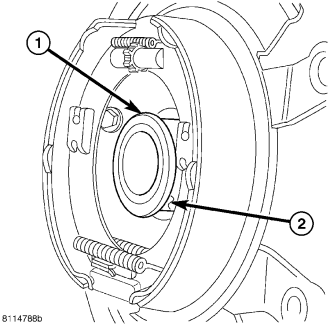

2. Remove axle shaft seal (1) from axle tube (2) with seal puller.
INSTALLATION
1. Remove any old sealer/burrs from axle tube.

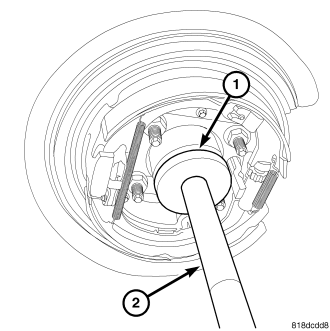

2. Coat new seal lip with axle lubricant and install seal with Installer 8493 (1) and Handle C-4171 (1).
3. Install axle shaft (1) in axle tube (2)..
