REAR
DESCRIPTION
CAUTION: Suspension components with rubber/urethane bushings should be tightened with the vehicle at normal ride height. It is important to have the springs supporting the weight of the vehicle when the fasteners are torqued. This will maintain vehicle ride comfort and prevent premature bushing wear.

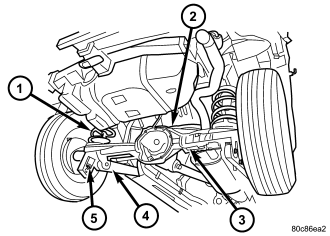

The rear suspension is comprised of :
- Drive axle
- Shock absorbers (5)
- Coil springs (1)
- Lower suspension arms (4)
- Upper suspension arm (2)
- Stabilizer bar (3)
WARNING
WARNING: Suspension components with rubber bushings must be tightened with the vehicle at normal ride height. It is important to have the springs supporting the weight of the vehicle when the fasteners are torqued. If springs are not at their normal ride position, vehicle ride comfort will be affected and cause premature bushing wear.
DIAGNOSIS AND TESTING - REAR SUSPENSION
| CONDITION |
POSSIBLE CAUSES |
CORRECTION |
| VEHICLE INSTABILITY |
1. Loose or worn wheel bearings. |
1. Replace wheel bearings. |
| 2. Loose, worn or bent suspension components. |
2. Inspect, tighten or replace components as necessary. |
|
| 3. Tire pressure. |
3. Adjust tire pressure. |
|
| VEHICLE PULLS TO ONE SIDE |
1. Weak or broken spring. |
1. Replace spring. |
| 2. Alignment. |
2. Align vehicle to specifications. |
|
| 3.Tires. |
3. Replace tires. |
|
| 4. Brakes. |
4. Repair as necessary. |
|
| KNOCKING, RATTLING OR SQUEAKING |
1. Worn shock bushings. |
1. Replace shock. |
| 2. Loose shock mounting. |
2. Tighten to specifications. |
|
| 3. Shock valve. |
3. Replace shock. |
|
| 4. Loose upper ball joint. |
4. Replace ball joint. |
|
| 5. Loose, worn or bent suspension components. |
5. Inspect, tighten or replace components as necessary. |
|
| IMPROPER TRACKING |
1. Loose, worn or bent suspension components. |
1. Inspect, tighten or replace components as necessary. |
| 2. Bent axle. |
2.Replace axle. |
