SPRING
REMOVAL
1. Raise and support the vehicle. Position a hydraulic jack under the axle to support the axle.
2. Remove the shock absorber lower bolt from the axle bracket.

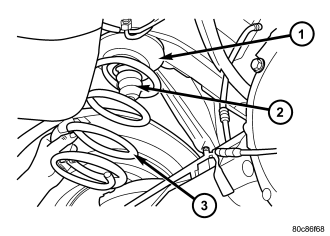

3. Lower the hydraulic jack and tilt the axle and remove the coil spring (3) .
4. Remove and inspect the upper and lower spring isolators (1) .
INSTALLATION
1. Install the upper isolator (1) .
2. Install the lower isolator .
3. Pull down on the axle and position the coil spring (3) in the lower isolator.
CAUTION: Ensure the spring is positioned on the lower isolator.
4. Raise the axle with the hydraulic jack.
5. Install the shock absorber to the axle bracket and tighten to 115 N·m (85 ft. lbs.).
6. Remove the supports and lower the vehicle.
