LOSS OF IGNITION RUN ONLY

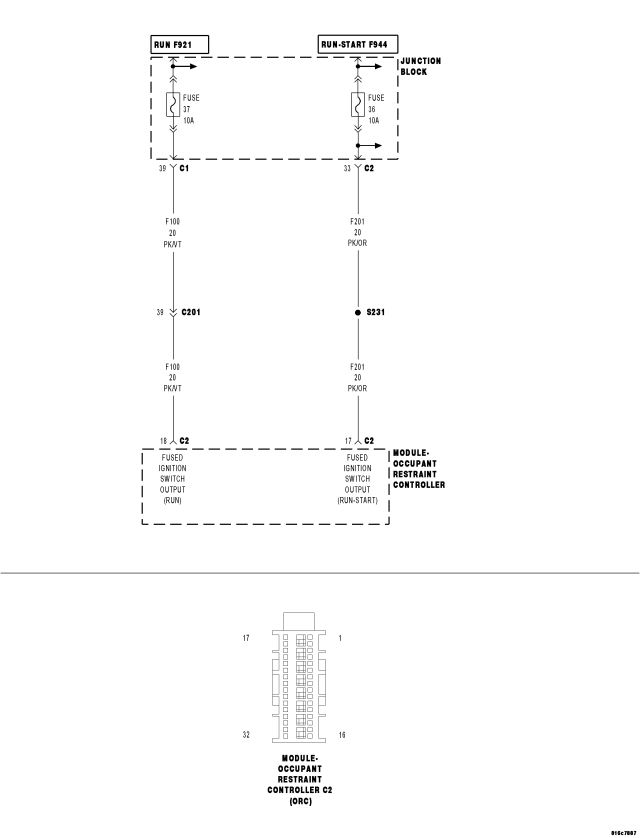

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition in the Run position.
Set Condition:
The Occupant Restraint Controller (ORC) monitors the voltage of the (F100) Fused Ignition Switch Output (Run) circuit and will set this DTC if it drops below approximately 6.0 volts.

Possible Causes

(F100) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT SHORTED TO GROUND

IGNITION SWITCH OUTPUT (RUN) CIRCUIT OPEN

(F100) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT OPEN

AIRBAG RUN ONLY CIRCUIT FUSE OPEN

ORC, FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT SHORTED TO GROUND

ORC, FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT OPEN

Diagnostic Test

1. DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.

Turn the ignition on.

Select ACTIVE or STORED DTC:

ACTIVE DTC

Go To 2

STORED DTC

Go To 7

2. CHECK THE AIRBAG RUN ONLY CIRCUIT FUSE

Turn the ignition off.
Remove and inspect the Airbag Run Only circuit fuse.

NOTE: Check connectors - Clean and repair as necessary.

Is the fuse open?

Yes

Go To 3

Go To 5

3. CHECK THE (F100) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT RESISTANCE

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Measure the resistance of the (F100) Fused Ignition Switch Output (Run) circuit between ground and the Airbag Run Only circuit fuse terminal (output side).

Is the resistance below 100.0 ohms?

Yes

Go To 4

Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals. Replace the Airbag Run Only circuit fuse.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

4. CHECK THE (F100) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT FOR A SHORT TO GROUND

Disconnect the ORC C2 connector.

NOTE: Check connectors - Clean and repair as necessary.

Connect the appropriate Load Tool Adaptor to the ORC C2 connector.

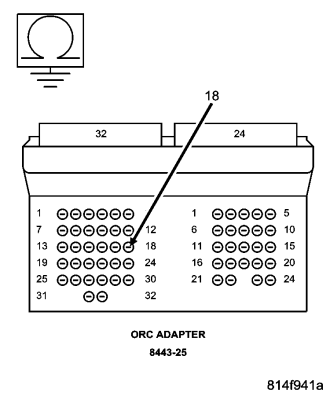

Measure the resistance of the (F100) Fused Ignition Switch Output (Run) circuit between ground and the ORC Adapter.

Is the resistance below 100.0 ohms?

Yes

Repair the (F100) Fused Ignition Switch Output (Run) circuit for a short to ground. Replace the Airbag Run Only circuit fuse.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and personal injury or death.
WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Replace the ORC in accordance with the Service Information. Replace the Airbag Run Only circuit fuse.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

5. CHECK THE IGNITION SWITCH OUTPUT (RUN) CIRCUIT FOR AN OPEN

Turn the ignition on.
Measure the voltage of the Ignition Switch Output (Run) circuit at the Airbag Run Only circuit fuse terminal (input side).

NOTE: Reinstall the fuse after performing this test.

Is the voltage above 6.0 volts?

Yes

Go To 6

Repair the Ignition Switch Output Run circuit for an open. Reinstall the Airbag Run Only circuit fuse.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

6. CHECK THE (F100) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Disconnect the ORC C2 connector.

NOTE: Check connectors - Clean and repair as necessary.

NOTE: If not done so previously, reinstall the Airbag Run-Start circuit fuse.

Connect the appropriate Load Tool Adapter to the ORC C2 connector.

NOTE: If not done so previously, reinstall the Airbag Run Only circuit fuse.

WARNING: To avoid personal injury or death, turn the ignition on, then, reconnect the battery.

Measure the voltage of the (F100) Fused Ignition Switch Output (Run) Only circuit.

Is the voltage above 6.0 volts?

Yes

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and personal injury or death.
Replace the ORC in accordance with the Service Information. Replace the Airbag Run Only circuit fuse.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

Repair the (F23 Fused Ignition Switch Output (Run) circuit for an open.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

7. CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents in this Section for a complete list of airbag system diagnostic procedures.

With the scan tool, record and erase all Airbag System Module DTCs.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
Reconnect all disconnected components and harness connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.

With the scan tool, monitor for active codes while performing the following:

Wiggle the wiring harness and connectors of the related airbag circuit.
Continue the test until either a code becomes active or the problem area is isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question / causing the intermittent condition.

Are any ACTIVE DTCs present?

Yes

Select the appropriate diagnostic procedure from the Table of Contents in this section.

No problem found at this time. Erase all codes before returning the vehicle to the customer.
