2007 Liberty KJ Factory Service Manual 8 - ELECTRICAL

LOSS OF IGNITION RUN - START

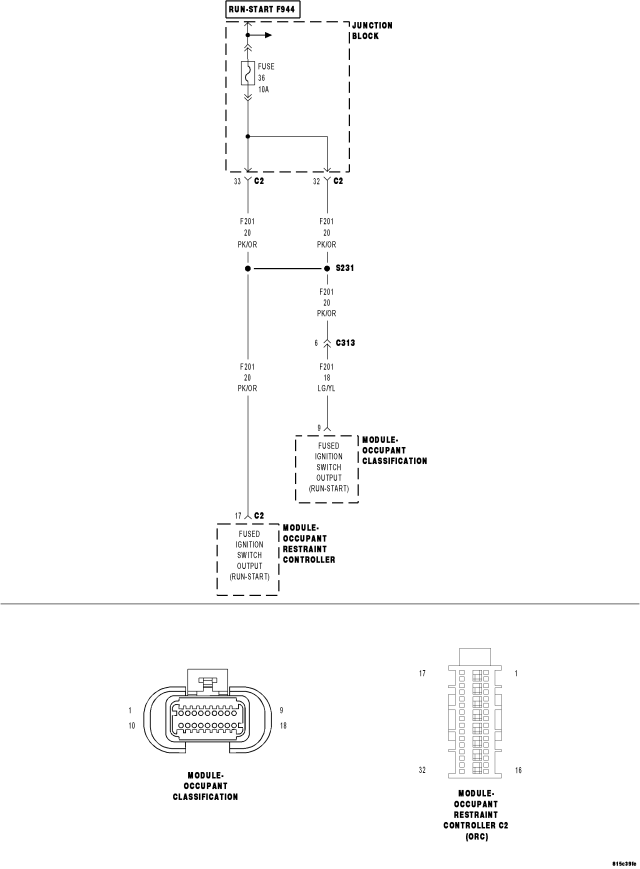

For a complete wiring diagram Refer to Section 8W.



Possible Causes

(F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) SHORTED TO GROUND

(F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN

(F944) IGNITION SWITCH OUTPUT CIRCUIT OPEN

JUNCTION BLOCK 36 AIRBAG RUN-START CIRCUIT FUSE OPEN

OCCUPANT CLASSIFICATION MODULE (OCM)

OCCUPANT RESTRAINT CONTROLLER (ORC)





Diagnostic Test

1. DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.


Turn the ignition on.

Select ACTIVE or STORED DTC:

ACTIVE ORC DTC


STORED ORC DTC

2. CHECK THE AIRBAG RUN-START CIRCUIT FUSE

Turn the ignition off.
Remove and inspect the Airbag Run-Start circuit fuse.

NOTE: Check connectors - Clean and repair as necessary.



Is the fuse open?

Yes


No

3. CHECK FOR A SHORTED (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT


WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.


Measure the resistance of the (F201) Fused Ignition Switch Output (Run-Start) circuit between ground and the Airbag Run-Start fuse terminal (output side).

Is the resistance below 100.0 ohms?

Yes


No

4. CHECKING EQUIPMENT


Is the vehicle equipped with an Occupant Classification System?

Yes


No

5. CHECK THE OCCUPANT CLASSIFICATION MODULE (OCM) FOR A SHORT TO GROUND



Disconnect the OCM harness connector.

NOTE: Check connectors - Clean and repair as necessary.


Measure the resistance of the (F201) Fused Ignition Switch Output (Run-Start) circuit between ground and the Airbag Run-Start fuse terminal (output side).

Is the resistance below 100.0 ohms?

Yes


No

6. CHECK THE OCCUPANT RESTRAINT CONTROLLER (ORC) FOR A SHORT TO GROUND



JB F201 OHM OUTPUT R ST


Disconnect the ORC C1 and C2 connectors.

NOTE: Check connectors - Clean and repair as necessary.


Connect the Load Tool ORC 8443–25 Adaptor to the ORC C2 connector.
Measure the resistance of the (F201) Fused Ignition Switch Output (Run-Start) circuit.

Is the resistance below 100.0 ohms?

Yes


No

7. DETERMINE THE CORRECT REPAIR

NOTE: The Occupant Classification Module (OCM) and the Passenger Seat Bladder and Cushion Kit are the only serviceable OCS components.


Determine the correct repair by verifying if the front passenger seat has a Bladder and Cushion Service Kit as follows:

Does the seat have a Bladder and Cushion Service Kit?

Yes


No

8. CHECK THE (F944) IGNITION SWITCH OUTPUT CIRCUIT FOR AN OPEN



JB F944 VOLTS INPUT R ST


Turn the ignition on.
Measure the voltage of the (F944) Ignition Switch Output circuit at the Airbag Run-Start circuit fuse terminal (input side).

NOTE: Reinstall the fuse after performing this test.



Is the voltage above 4.5 volts?

Yes


No

9. CHECK THE (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN


WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.


Disconnect the ORC C1 and C2 connector.

NOTE: Check connectors - Clean and repair as necessary.


NOTE: If not done so previously, reinstall the Airbag Run-Start circuit fuse.


Connect the appropriate Load Tool Adaptor to the ORC C2 connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.


Measure the voltage of the (F201) Fused Ignition Switch Output (Run-Start) Circuit.

Is the voltage above 4.5 volts?

Yes


No

10. CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents in this Section for a complete list of airbag system diagnostic procedures.


With the scan tool, record and erase all Airbag System Module DTCs.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.


Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
Reconnect all disconnected components and harness connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.


With the scan tool, monitor for active codes while performing the following:
In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question / causing the intermittent condition.

Are any ACTIVE DTCs present?

Yes


No
