OCM CONFIGURATION MISMATCH

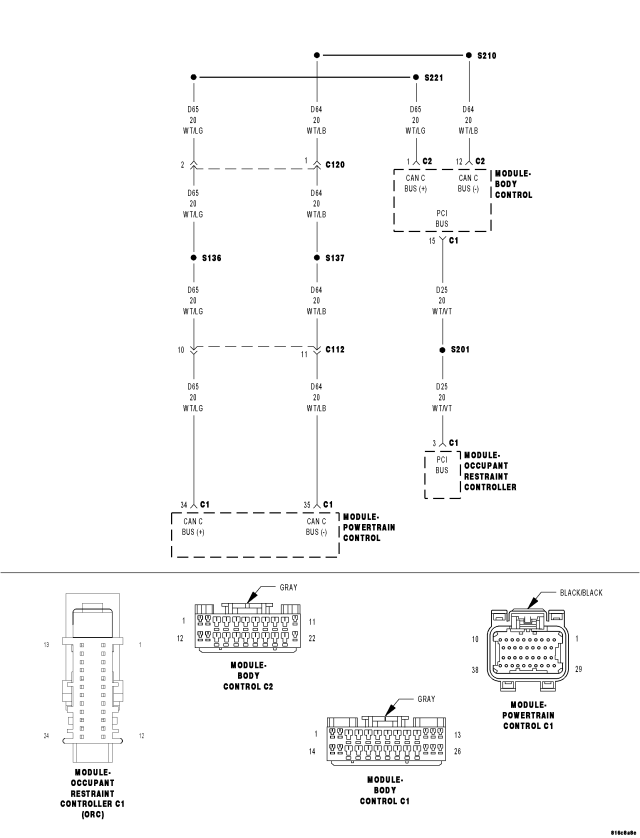

For a complete wiring diagram Refer to Section 8W.

When Monitored:
At ignition on.
Set Condition:
The Occupant Restraint Controller (ORC) monitors the Bus for the Occupant Classification Module (OCM) messages and then compares the messages to the known configuration. The ORC will set this DTC if it is not configured for Passenger Only OCM and OCM messages are broadcast on the Bus.

Possible Causes

PCM

ORC

Diagnostic Test

1. DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.

Select ACTIVE or STORED DTC:

ACTIVE DTC

Go To 2

STORED DTC

Go To 3

2. VERIFY THAT THE PCM IS PROGRAMMED WITH THE CORRECT VIN

With the scan tool, select System Tests and select VIN Verification.
Compare the VIN displayed by the scan tool and the VIN on the Vehicle VIN plate.

Does the current VIN match the VIN on the vehicle VIN plate?

Yes

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and personal injury or death.
WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Replace the ORC in accordance with the Service Information.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

Replace and program the PCM in accordance with the Service Information.

Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

3. CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents in this Section for a complete list of airbag system diagnostic procedures.

With the scan tool, record and erase all Airbag System Module DTCs.
Turn the ignition off, wait 15 seconds, then turn the ignition on.
With the scan tool, check for active DTCs in the ORC.

Does the scan tool display any DTCs?

Yes

Select the appropriate diagnostic procedure from the Table of Contents in this section.

No problem found at this time. Erase all codes before returning vehicle to customer.
