REMOVAL
FRONT
1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.
CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose will result. Provide a suitable support to hang the caliper securely.

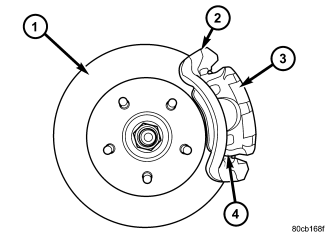

3. Remove the caliper adapter (2) . (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - REMOVAL).
4. Remove the disc brake rotor (1).
REAR
1. Raise and support the vehicle
2. Remove the tire and wheel assembly .

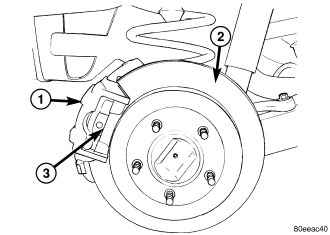

3. Remove the disc brake caliper (1) and pads (3), (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - REMOVAL) .
4. Remove the retianing clips and rotor assembly.
