FOLDING REAR SEAT BACK LATCH / LOCK
REMOVAL
1. Remove the rear seat back cushion. (Refer to 23 - BODY/SEATS/SEAT BACK CUSHION / COVER - REAR - REMOVAL)
2. Disconnect the shoulder belt release cable.

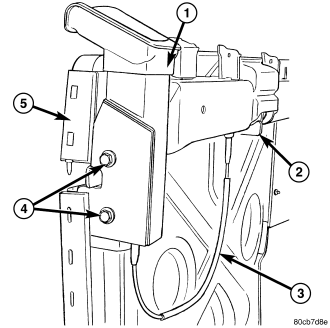

3. Remove the bolts and remove the latch/lock assembly.
INSTALLATION
1. Install the latch/lock assembly and install the bolts.
2. Tighten the bolts to 28 N·m (21 ft. lbs.).
3. Connect the shoulder belt release cable.
4. Install the rear seat back cushion. (Refer to 23 - BODY/SEATS/SEAT BACK CUSHION / COVER - REAR - INSTALLATION)
