MANUAL SEAT RISER
REMOVAL
WARNING: Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
1. Remove the seat. (Refer to 23 - BODY/SEATS/SEAT - FRONT - REMOVAL)

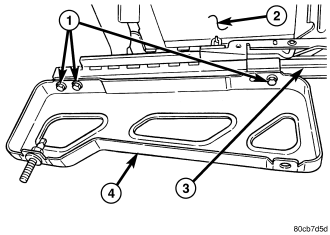

2. Remove the bolts and remove the rivet from the release handle.
3. Remove the riser.
INSTALLATION
WARNING: Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
1. Install the seat riser and install the bolts.
2. Tighten the bolts to 28 N·m (21 ft. lbs.).
3. Install a new release handle rivet.
4. Install the seat. (Refer to 23 - BODY/SEATS/SEAT - FRONT - INSTALLATION)
