SEAT BACK - FRONT
REMOVAL
WARNING: Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
1. Remove the seat. (Refer to 23 - BODY/SEATS/SEAT - FRONT - REMOVAL)
2. Remove the seat cushion side shields.

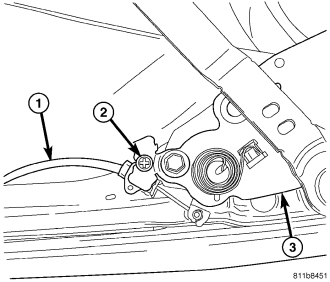

3. Remove the screw and disconnect the lock out cable from both recliners.

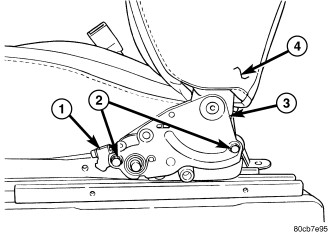

4. Remove the bolts and remove the seat back.
INSTALLATION
WARNING: Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
1. Install the seat back and install the bolts.
2. Tighten the bolts to 28 N·m (21 ft. lbs.).
3. Connect the lock out cable to both recliners and install the screws.
4. Install the belt buckle. (Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE - INSTALLATION)
5. Install the side shields.
6. Install the seat. (Refer to 23 - BODY/SEATS/SEAT - FRONT - INSTALLATION)
