SEAT CUSHION COVER - FRONT
REMOVAL
WARNING: Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
1. Remove the seat cushion. (Refer to 23 - BODY/SEATS/SEAT CUSHION - FRONT - REMOVAL)

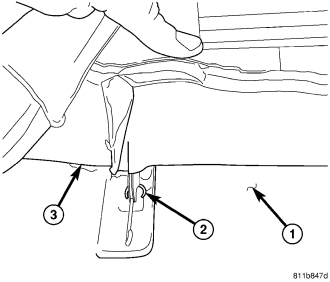

2. Disconnect the J-straps.
3. Remove the hog rings and remove the cushion cover.
INSTALLATION
WARNING: Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
1. Position the seat cushion cover and install new hog rings.
2. Connect the J-straps.
3. Install the seat cushion. (Refer to 23 - BODY/SEATS/SEAT CUSHION - FRONT - INSTALLATION)
