INSTALLATION
3.7L

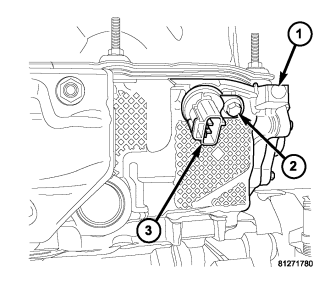

1. Clean out machined hole in cylinder head.
2. Apply a small amount of engine oil to sensor O-ring.
3. Install sensor (3) into cylinder head (1) with a slight rocking and twisting action.
CAUTION: Before tightening sensor mounting bolt, be sure sensor is completely flush to cylinder head. If sensor is not flush, damage to sensor mounting tang may result.
4. Install mounting bolt (2) and tighten to 12 N·m (106 in. lbs.).
5. Connect electrical connector to sensor.
2.8L TURBODIESEL

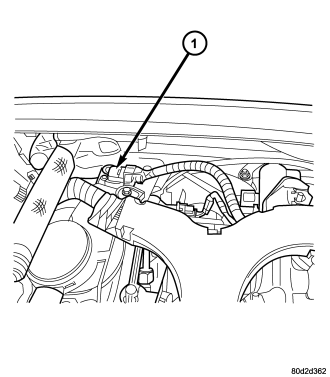

1. Lubricate O-ring on new CMP sensor (1) and install in cylinder head cover/intake manifold .
2. Install retaining bolts. Torque to 11 N·m (105 in. lbs.).
3. Connect sensor electrical connector.
4. Install engine cover (Refer to 9 - ENGINE COVER - INSTALLATION) .
5. Connect negative battery cable.
