REMOVAL
3.7L

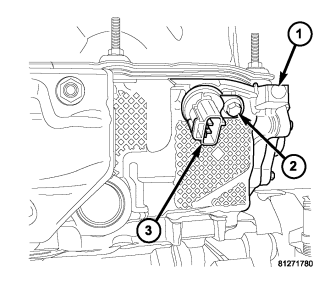

The Camshaft Position Sensor (CMP) (3) is bolted to the front/top of the right cylinder head (1).
1. Disconnect electrical connector at CMP sensor.
2. Remove sensor mounting bolt (2).
3. Carefully twist sensor from cylinder head.
4. Check condition of sensor O-ring.
2.8L TURBODIESEL
1. Disconnect negative battery cable.
2. Remove engine cover (Refer to 9 - ENGINE COVER - REMOVAL).
3. Disconnect CMP sensor electrical connector .

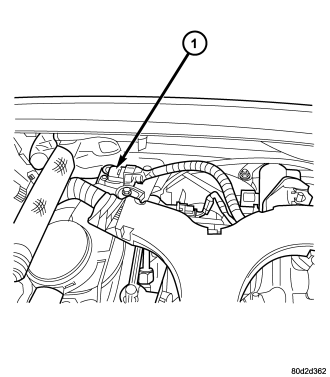

4. Remove CMP sensor (1) retaining bolt and remove sensor from cylinder head cover/intake manifold .
