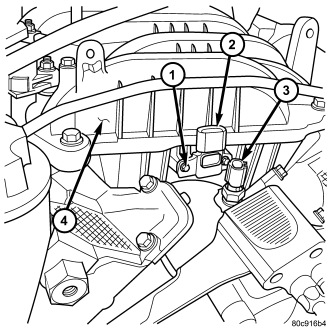

INSTALLATION
3.7L ENGINE
1. Apply thread sealant to sensor threads.
2. Install sensor to engine.
3. Tighten coolant temperature sensor to 11 N·m (8 ft. lbs.) torque.
4. Replace any lost engine coolant.
2.8L DIESEL ENGINE
1. Install coolant temperature sensor in thermostat housing .
2. Connect coolant temperature sensor electrical connector .
3. Refill cooling system. (Refer to 7 - COOLING/ENGINE/COOLANT - STANDARD PROCEDURE)
4. Connect negative battery cable.
