INSTALLATION
INSTALLATION - 2.8L DIESEL
NOTE: Clean all propeller shaft bolts and apply Mopar® Lock & Seal Adhesive or equivalent to the threads before installation.
1. Install propeller shaft between companion flanges.
2. Align marks on the companion flanges with the marks on the C/V joints.
3. Install front C/V joint bolts and tighten to 30 N·m (22 ft. lbs.).

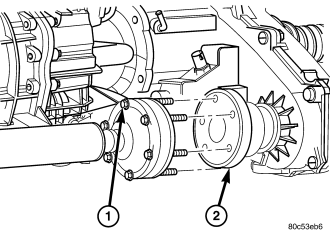

4. Install rear C/V joint bolts (1) and tighten to 30 N·m (22 ft. lbs.).
5. Install exhaust flange (1) and bolts.
INSTALLATION - GAS ENGINE
NOTE: Clean all propeller shaft bolts and apply Mopar® Lock & Seal Adhesive or Loctite® 242 to the threads before installation.
1. Install propeller shaft between companion flanges.
2. Align marks on the companion flanges with the marks on the C/V joints.
3. Install front C/V joint bolts and tighten to 30 N·m (22 ft. lbs.).
4. Install rear C/V joint bolts (1) and tighten to 30 N·m (22 ft. lbs.).
