DEFLECTOR-WIND
REMOVAL
1. Open sunroof glass panel to the full open position.
2. Remove screws (2) attaching wind deflector straps to front crossmember.
3. Rotate wind deflector back about 110° and slide backwards to disengage from the spring hook.
INSTALLATION

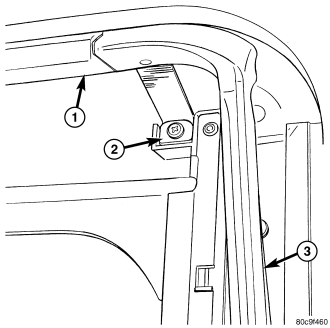

1. Place wind deflector (1) in position 110° to roof.
2. Push arms (3) down and forward to engage spring hooks.
3. Rotate wind deflector forward into correct position. Depress wind deflector down onto front crossmember to check spring function.
4. Install fasteners attaching wind deflector straps (2) to front crossmember.
5. Test sunroof operation.
