HOSE-DRAIN
REMOVAL

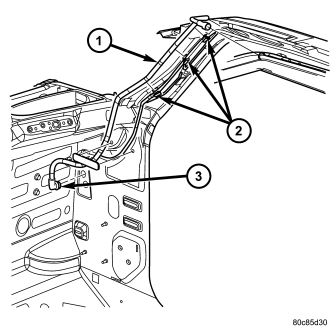

FRONT DRAIN TUBES
1. Move glass panel to the fully closed position.
2. Remove sunroof opening trim lace.
3. Remove the headliner. (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL)
4. Disconnect the drain hose from the sunroof housing.
5. Drain any liquid from hose connection, if necessary.
6. Remove the instrument panel top panel. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL)
7. Disconnect the grommet, attachment clips and remove the drain tube.

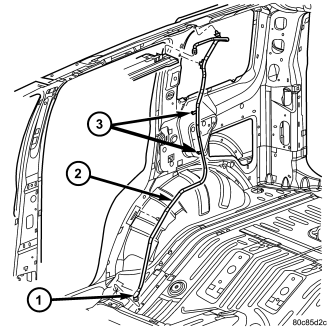

REAR DRAIN TUBES
1. Move glass panel to the fully closed position.
2. Remove sunroof opening trim lace.
3. Remove headliner.
4. Disconnect the drain hose from the sunroof housing.
5. Drain any liquid from hose connection, if necessary.
6. Disconnect the grommet, attachment clips and remove the drain tube.
INSTALLATION
FRONT DRAIN TUBES
1. Connect the drain hose to the sunroof housing and test drainage .
2. Connect the body grommet and attachment clips.
3. Install the instrument panel top panel. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - INSTALLATION)
4. Install the headliner. (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION)
5. Install sunroof opening trim lace. (Refer to 23 - BODY/SUNROOF/OPENING TRIM LACE - INSTALLATION)
REAR DRAIN TUBES
1. Connect the drain hose to the sunroof housing and test drainage.
2. Connect the body grommet and attachment clips.
3. Install the headliner.
4. Install sunroof opening trim lace.
