SUNSHADE
REMOVAL
1. Remove glass assembly from the sunroof assembly. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - REMOVAL)

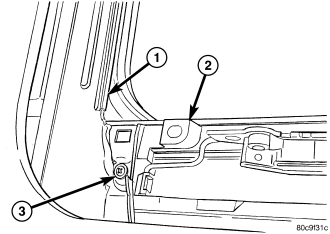

2. Remove two screws (3) from trough assembly (1).
3. Remove trough assembly (1).
4. Slide the sunshade forward to disengage the guide feet from the tracks through the cutouts at the front of the tracks.
CAUTION: Use care not to crease the sunshade when removing or installing.
INSTALLATION
1. Place sunshade into position, through the cutouts at the front of the tracks and slide the sunshade back.
2. Place trough (1) assembly into position on sunroof module and install the screws (3).
3. Install the glass panel. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - INSTALLATION)
