TROUGH
REMOVAL
1. Remove the glass panel. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - REMOVAL)

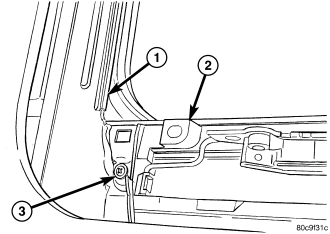

2. Through the top of the roof opening remove two screws (3) from trough assembly (1).
3. Remove trough assembly (1).
INSTALLATION
NOTE: When installing the trough be sure the trough crosses over the top of the sunshade.
1. Install the trough (1) and install the two screws (3).
2. Install the glass panel. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - INSTALLATION)
