WIRING
REMOVAL
1. Remove the headliner. (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL)

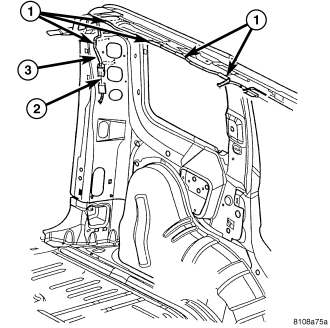

2. Disconnect wire harness from vehicle harness (2).

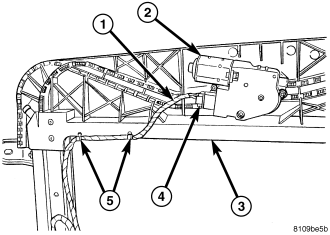

3. Disconnect drive motor electrical connector (4) and cut tie straps (5).
4. Remove harness (1).
INSTALLATION
1. Connect drive motor (4) electrical connectors.
2. Replace the two tie straps (5) on the module assembly (3).
3. Connect vehicle harness electrical connectors (2).
4. Install the headliner. (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION)
