DIAGNOSIS AND TESTING
CLUTCH PEDAL POSITION SWITCH

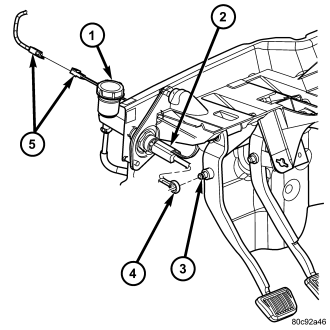

1. Disconnect switch 2-wire connector (5) in engine compartment.
2. Check switch continuity with an ohmmeter while operating clutch pedal.
- Pedal Depressed - Continuity
- Pedal Released - No Continuity
3. If continuity is not present or always present, replace clutch master cylinder. Switch is not serviced separately.
