INSTALLATION
FRONT

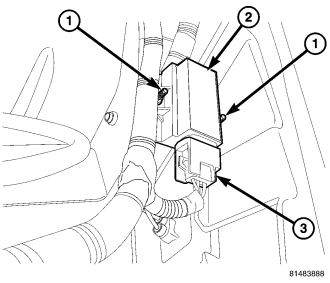

1. Reconnect the electrical connector (3) to the transponder (2).
2. Install the transponder (2) to the mounting bracket and install the mounting nuts (1) .
3. Install the front part of the wheel well housing cover.
4. Lower the vehicle.
REAR

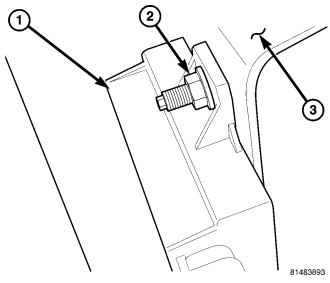

1. Install the transponder (1) to the bracket (3) and install the mounting nuts (2) .
2. Reconnect the electrical connector (4) to the transponder (3) .

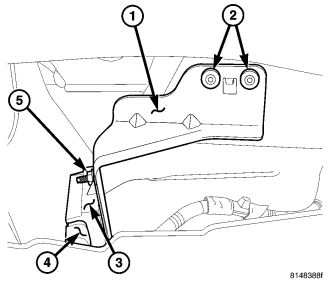

3. Install the transponder/bracket assembly (1) to the vehicle and install new rivets (2) .
4. Lower the vehicle.
