REMOVAL

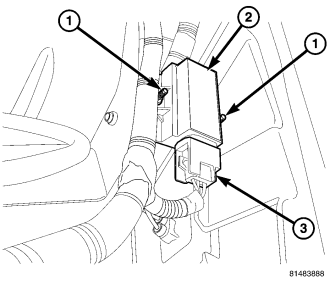

FRONT
1. Raise and support the vehicle.
2. Remove the front part wheel well housing cover and pull it back toward the tire to gain access to the transponder.
3. Remove the mounting nuts (1) for the transponder (2) from the mounting bracket.
4. Disconnect the electrical connector (3) and remove the transponder (2) from the vehicle .

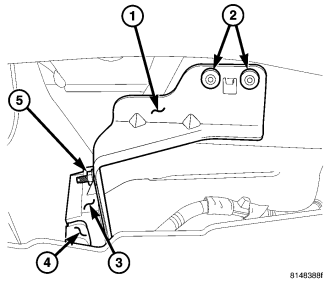

REAR
1. Raise and support the vehicle.
2. Drill out the rivets (2) for the transponder mounting bracket (1) .
3. Disconnect the electrical connector (4) .
4. Pull the transponder (1) with the bracket down and remove the mounting nuts (2) for the transponder (1) .
5. Remove the transponder (1) from the bracket (3) .
