DESCRIPTION

The two front washer nozzles (3) have integral latch features (5) and an anti-rotation tab (2) that secure them in dedicated holes in the cowl plenum cover/grille panel located near the base of the windshield. The domed upper surface of the washer nozzle is visible on the top of the plenum cover/grille panel, and the nozzle orifice (4) is oriented towards the windshield glass. The washer plumbing fittings (1) for the washer nozzles are concealed beneath the cowl plenum cover/grille panel. These fluidic washer nozzles are constructed of molded plastic.

The cowl plenum cover/grille panel must be removed from the vehicle to access the nozzles for service. The washer nozzles cannot be adjusted or repaired. If ineffective or damaged, they must be replaced.

REAR

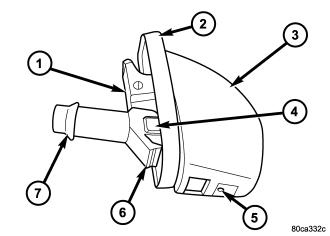

The rear washer nozzle (3) is a fluidic-type unit constructed of molded plastic. The nozzle is secured by a snap fit in a dedicated mounting hole located in the rear edge of the roof panel above the rear flip-up glass opening and to the right of the Center High Mounted Stop Lamp (CHMSL) unit. The nozzle orifice (5) is oriented downward toward the glass. A rubber gasket (2) on the back of the nozzle seals the nozzle to the roof panel opening. The back of the nozzle includes an integral alignment feature (4) on the left side, an integral engagement tab (1) on the top, an integral latch feature (6) on the bottom, and the washer plumbing nipple (7) which are all concealed between the outer roof panel and the rear roof inner header.

The rear washer nozzle latch feature is a one time component, and will be damaged if the nozzle is removed from its mounting hole for service. The rear washer nozzle cannot be adjusted or repaired. If ineffective or damaged, the entire nozzle unit must be replaced.
