REAR DOOR OUTER BELT MOLDING
REMOVAL
1. Lower window completely.
2. Remove trim panel as necessary. (Refer to 23 - BODY/DOORS - REAR/TRIM PANEL - REMOVAL)
3. Insert special tool #9093 between belt molding and glass at front and then slide tool back approximately 4.5 cm (1.75 in.).
4. Push down on outer belt molding and rotate upper part of tool outward from vehicle approximately 6 – 8 cm (2.5 - 3 in.) then lift up on molding to disengage from locking tab.
5. Repeat step 3 and 4 at 23 cm (9 in.) and 41 cm (16 in.).

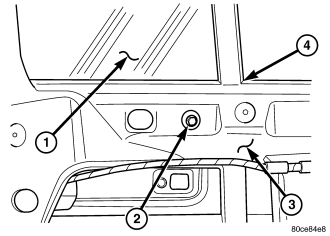

6. Loosen division bar bolt and slide tool 57 cm (23 in.) from front of door and disengage the last locking tab.
7. Remove belt molding.
INSTALLATION
1. Press the belt molding onto the outer door window flange starting at the back and working towards the front.
2. Tighten the division bar bolt to 9 N·m (80 in. lbs.).
3. Install the trim panel. (Refer to 23 - BODY/DOORS - REAR/TRIM PANEL - INSTALLATION)
