REMOVAL
FRONT
1. Lift the front wiper arm (1) to its over-center position to hold the wiper blade off of the glass and relieve the spring tension on the wiper arm to wiper pivot shaft connection.
2. Carefully pry the plastic nut cap (2) off of the pivot end of the wiper arm.
3. Remove the nut (3) that secures the wiper arm to the wiper pivot shaft (4).

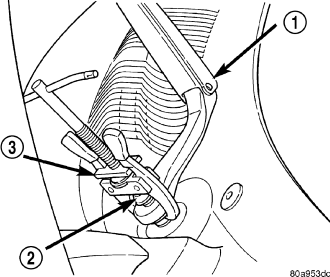

4. If necessary, use a suitable battery terminal puller (3) to disengage the wiper arm (1) from the wiper pivot shaft (2).
5. Remove the front wiper arm pivot end from the wiper pivot shaft.
REAR

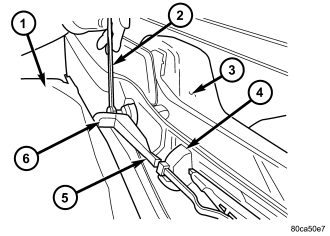

1. Lift the rear wiper arm pivot cover (6) by lifting it at the rear wiper motor output shaft end of the arm (5).
2. Remove the nut that secures the rear wiper arm to the rear wiper motor output shaft.
3. If necessary, use a battery terminal puller (3) to disengage the wiper arm (1) from the rear wiper motor output shaft splines (2).
NOTE: Depending upon the size and type of puller used, it may be necessary to remove the spare tire from the tailgate. Refer to the owner's manual in the vehicle glove box for information on removing the spare tire from the tailgate.
4. Remove the rear wiper arm pivot end from the motor output shaft.
